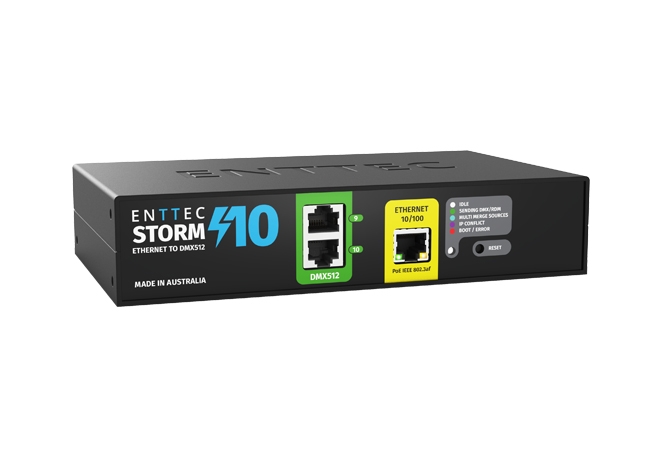

Storm10 – 10-universe Ethernet to DMX gateway

Compact and powerful 10-universe, multi-protocol Ethernet to DMX/RDM converter

SKU: 70057

Overview
Features
Connectivity
Resources

10 Universe Ethernet to DMX gateway

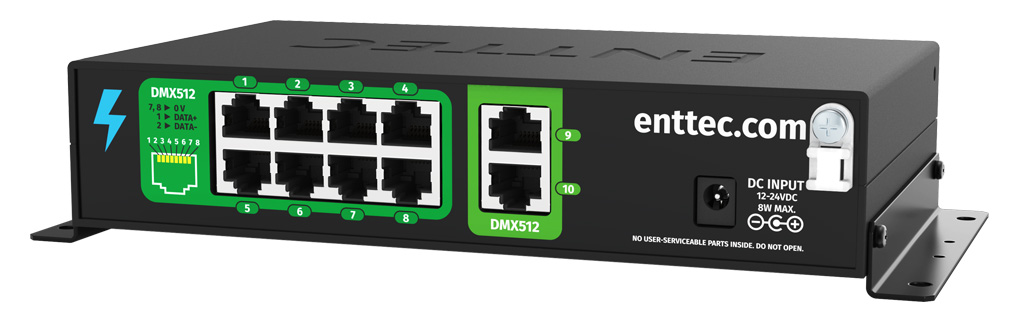

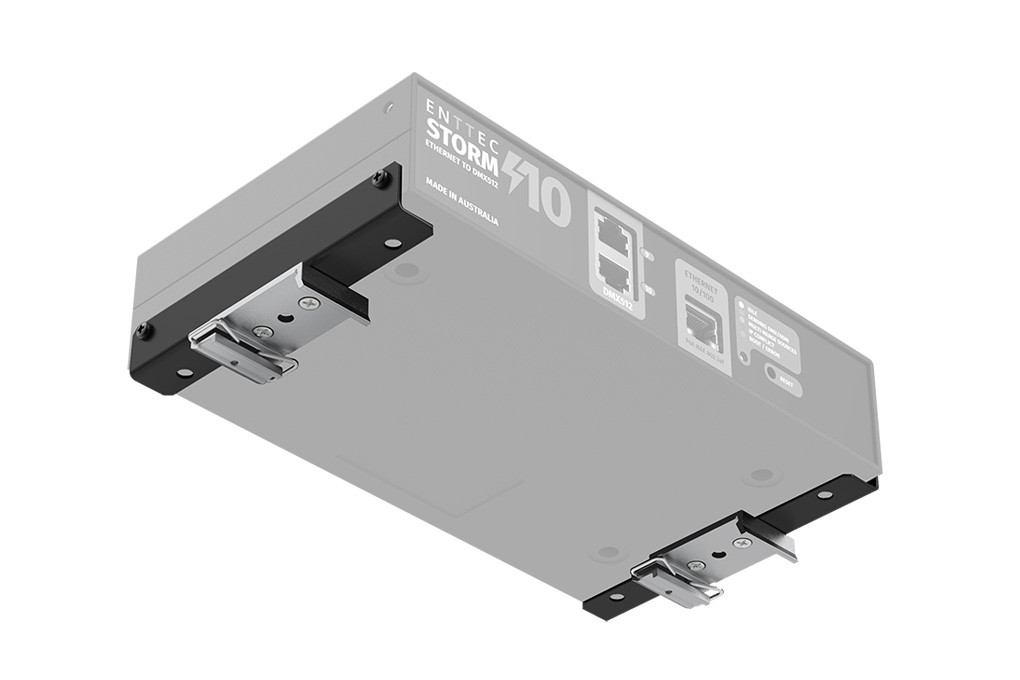

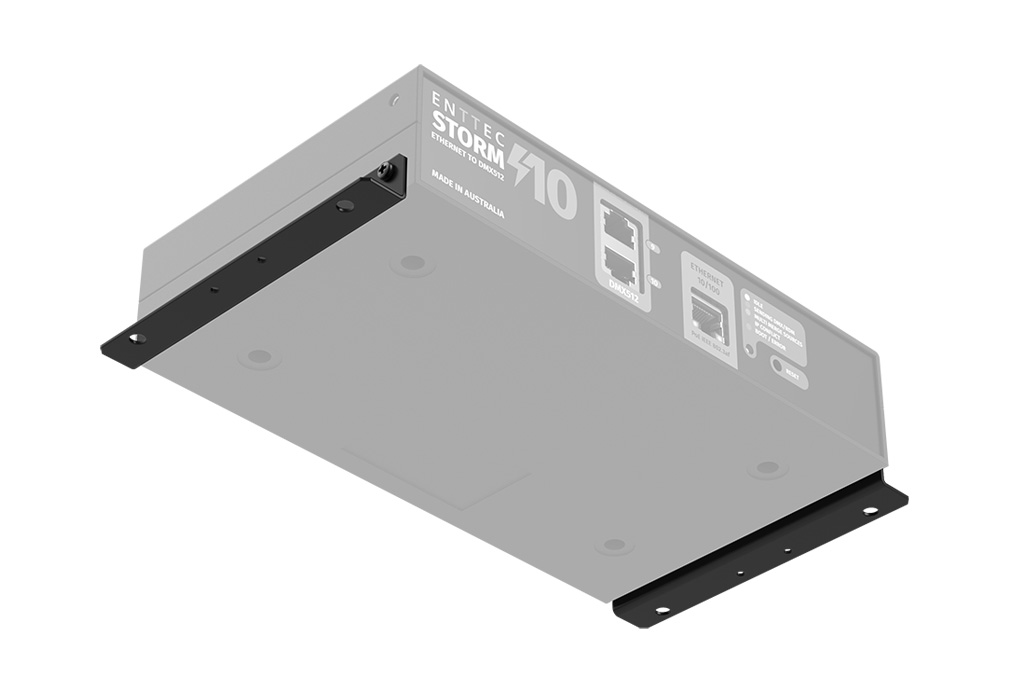

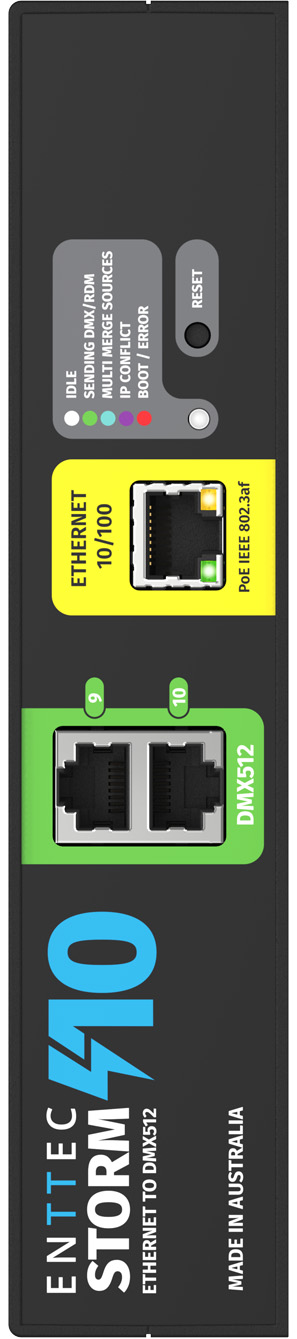

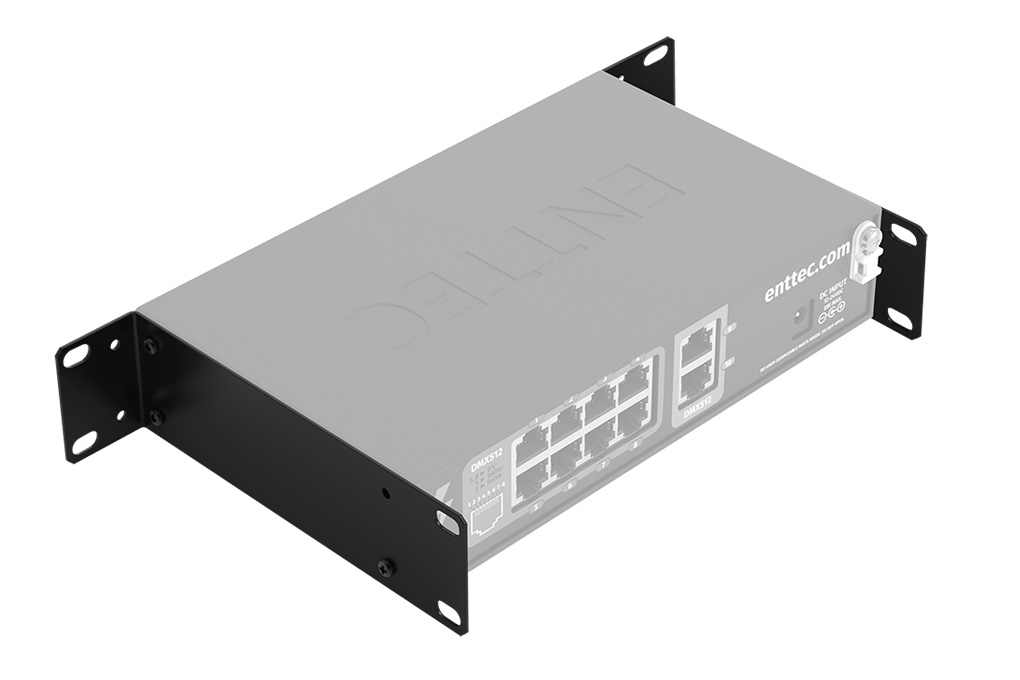

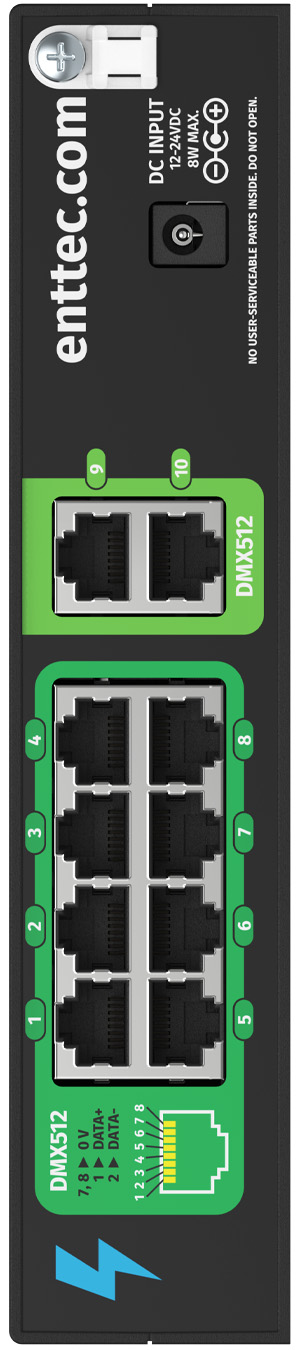

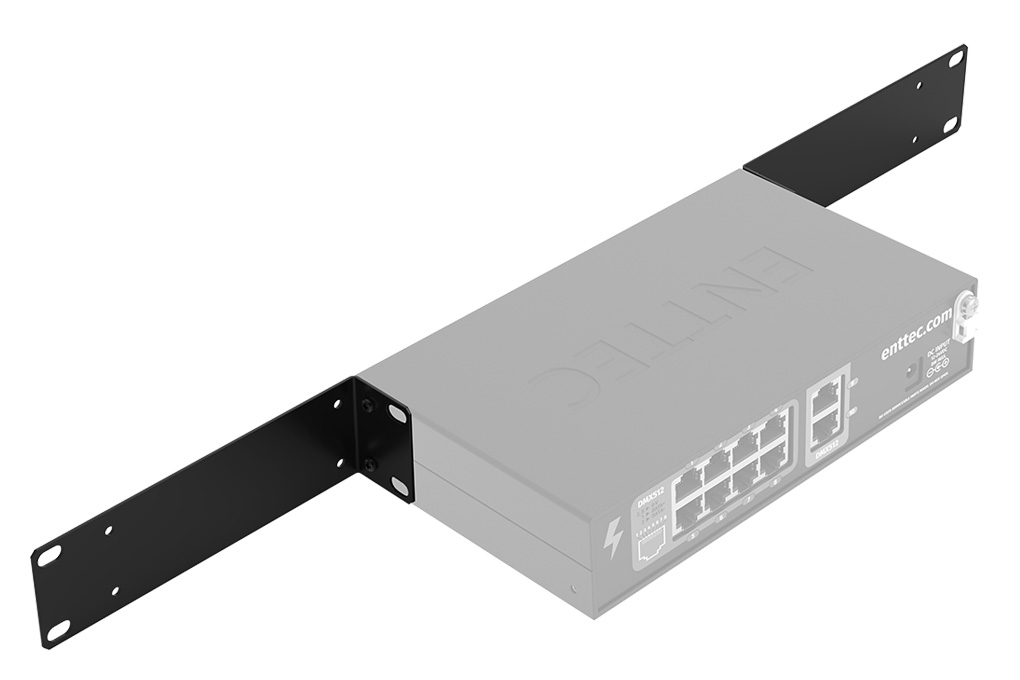

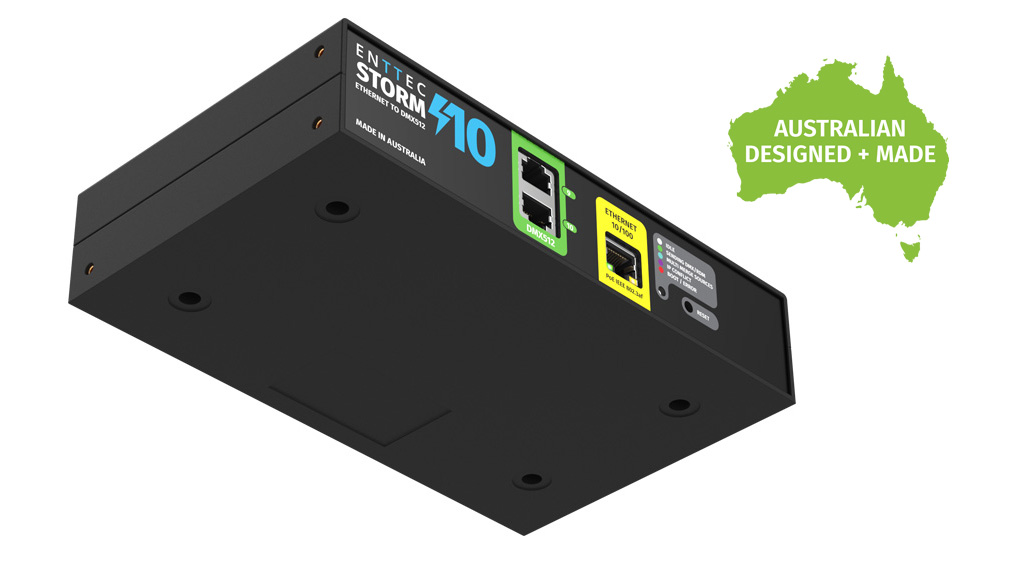

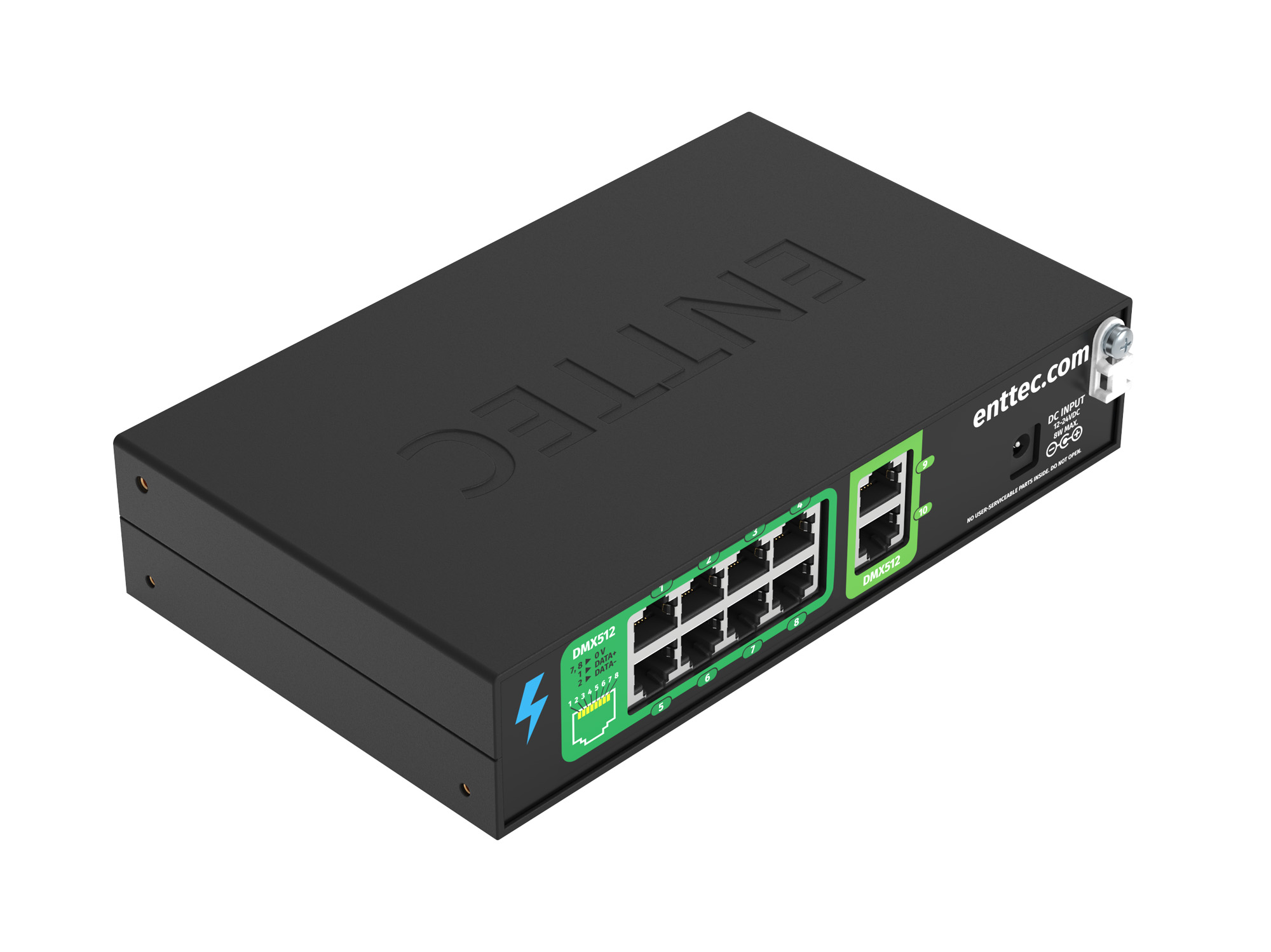

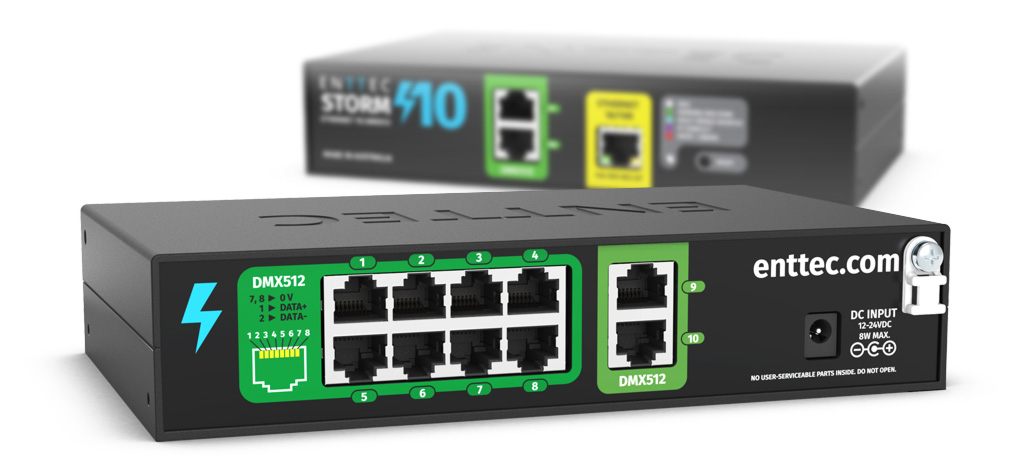

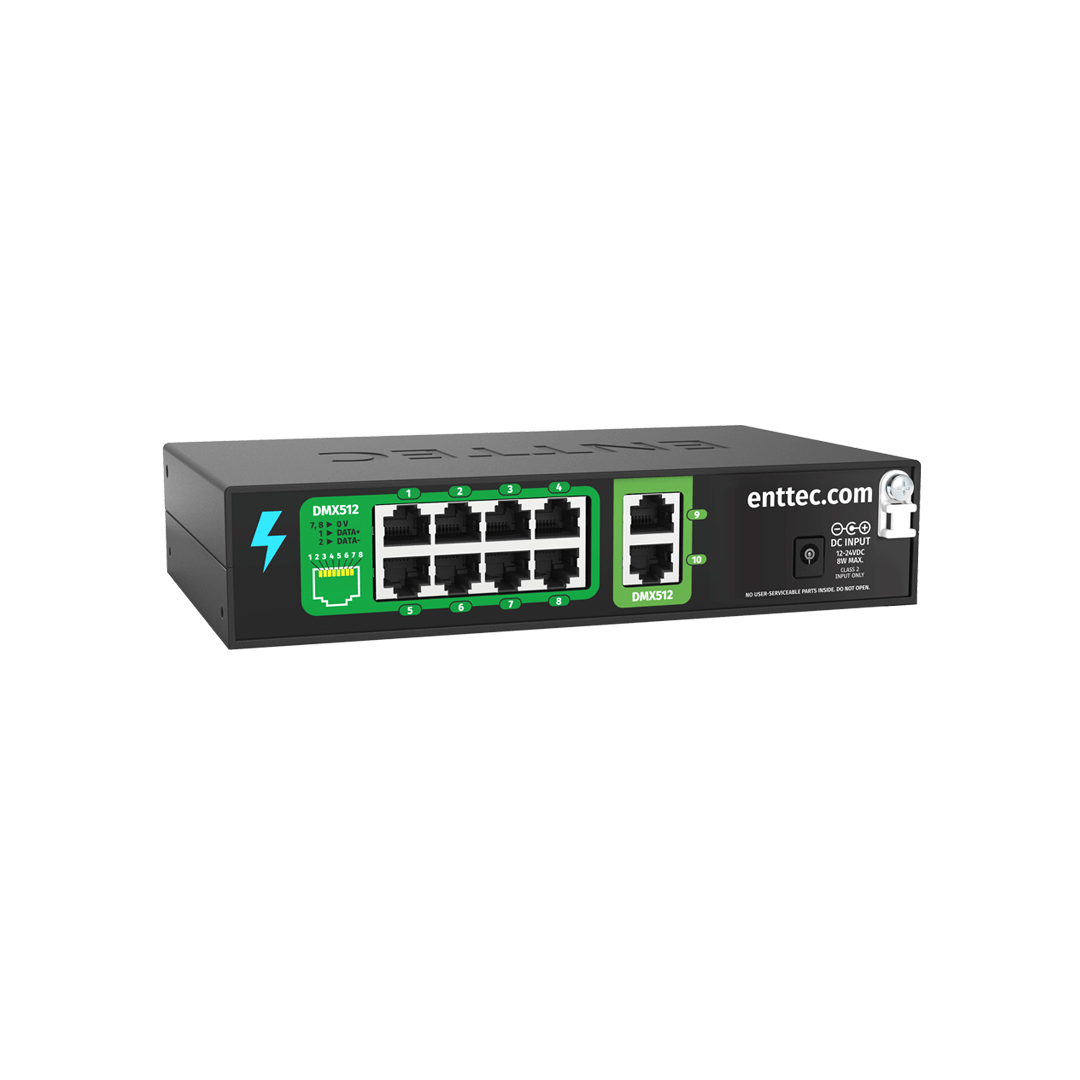

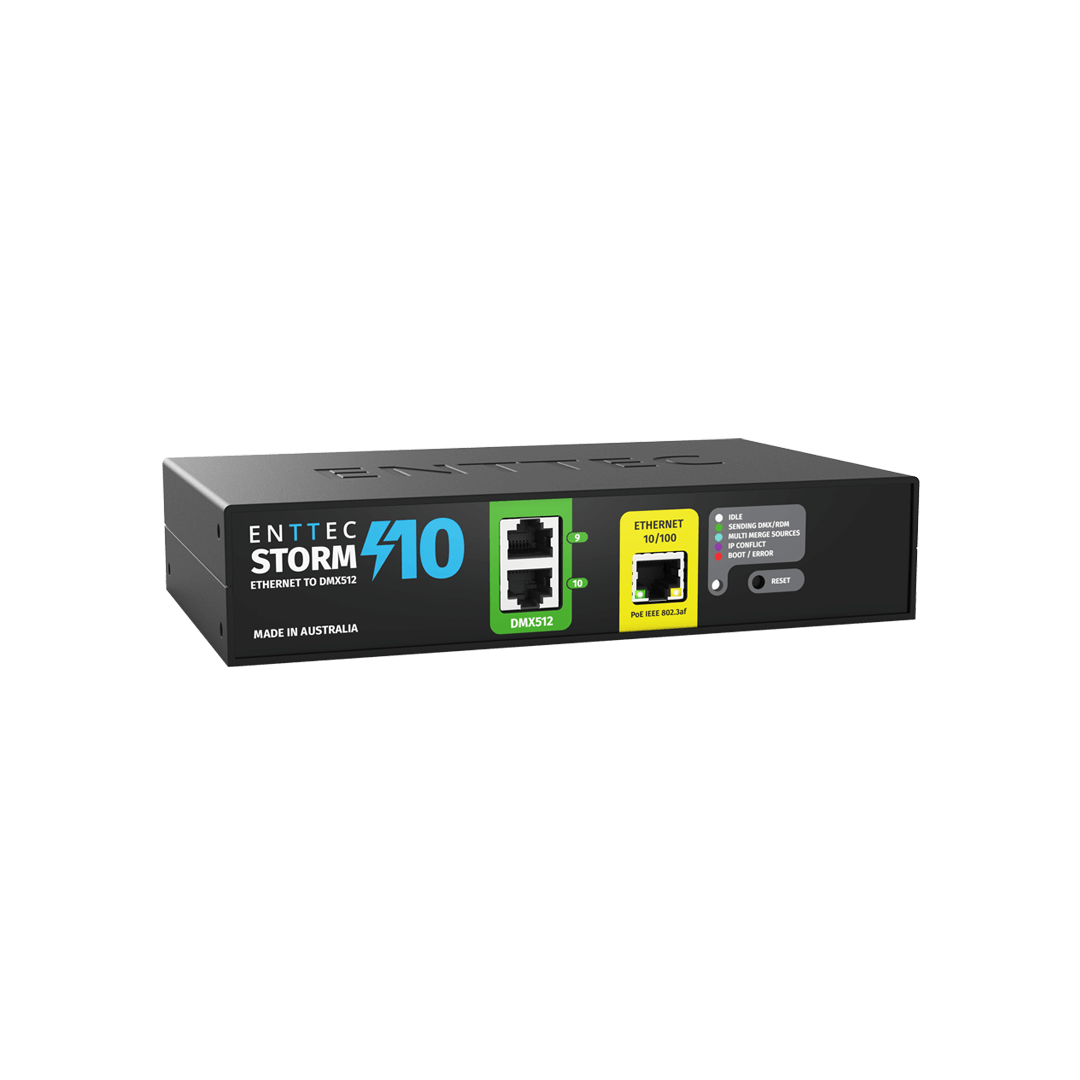

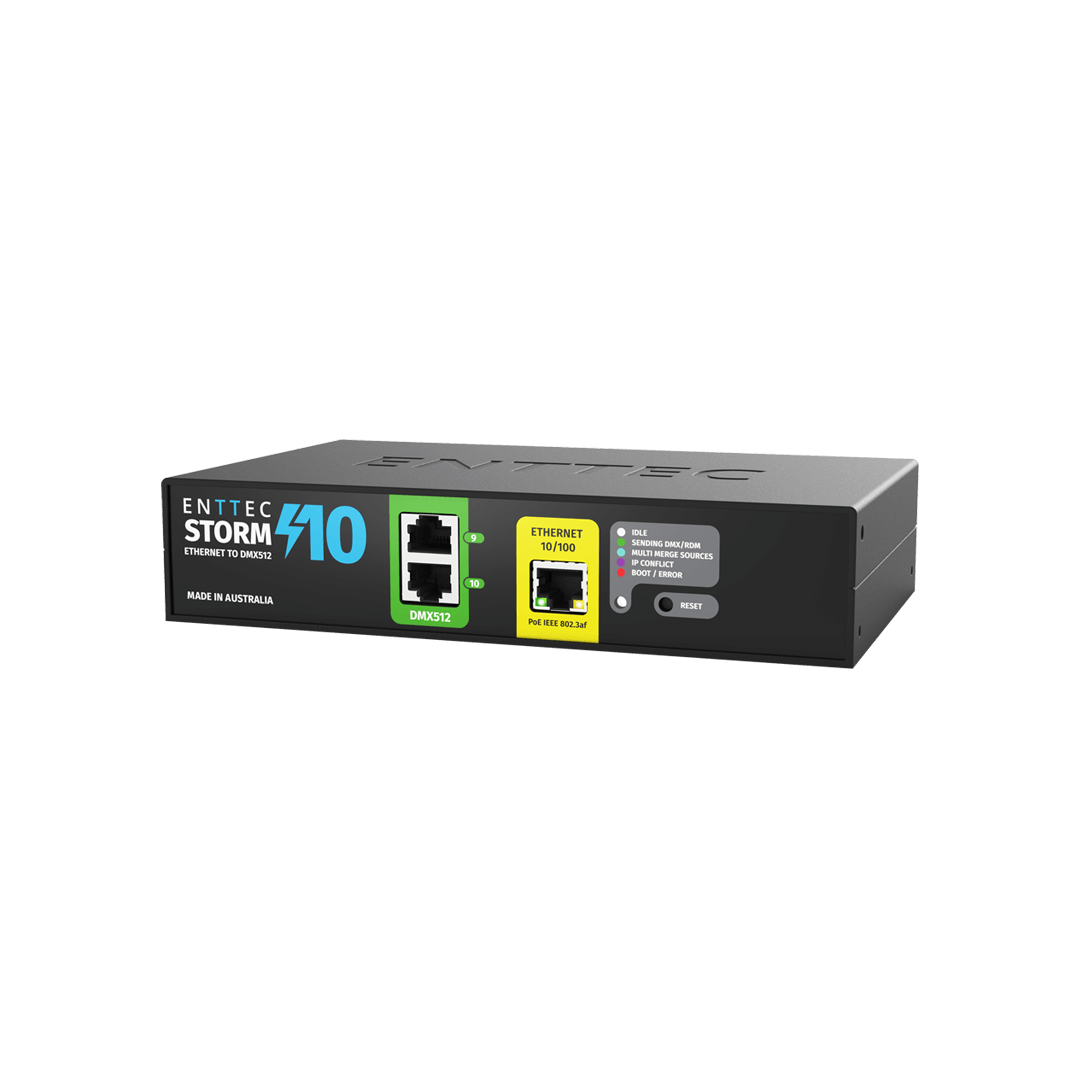

The Storm10 is a compact, 10-universe Ethernet-to-DMX converter, converting sACN, Art-Net, or ESP protocols to DMX512 with ease. Mount it using one of four options, and configure or update remotely via its intuitive web interface. It features 10 outputs and 2 front-facing ports for flexible cabling and future expansion. With an internal buffer and sync logic, the Storm10 ensures smooth, jitter-free LED matrix displays and perfect synchronization across your show. Reliable and predictable performance every time.

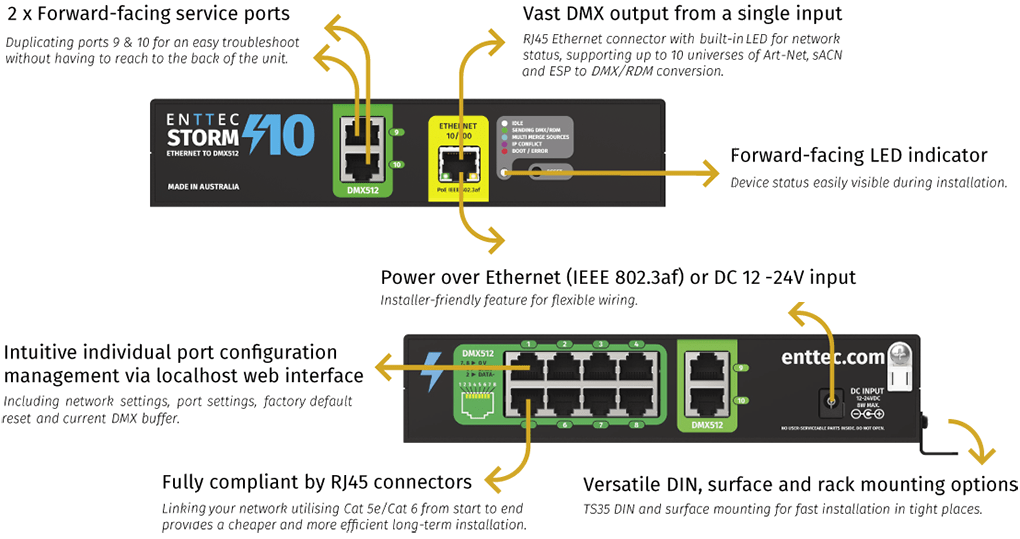

The Storm10 provides flexible control for any project, handling 10 universes of DMX data with options to expand by linking multiple units. Power it via PoE or DC. Configure each port individually for unique setups, adjusting protocols, merging options, and more. It features intuitive mounting options and supports Art-Net, sACN, ESP, and DMX512, with RDM for remote status updates and settings.

ENTTEC are proud to have pioneered the introduction of user-friendly web browser interfaces in the lighting control sector.

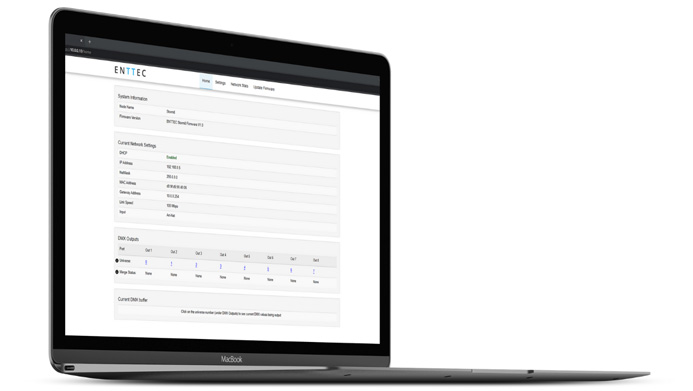

Just like all ENTTEC network products, simply connect to your Storm10 from anywhere on the same network using your favourite web browser to configure, manage and update your device settings. It’s that easy!

Choose from either LTP or HTP Merging per port (with up to 2 sources). Use another control source and let the Storm10 handle the output just to test your setup, then revert back to the master source when required.

We’re not new to this industry. We know that sometimes accidents happen or faults develop on installations over time. That’s why the Storm10 has been designed to block DC power entering each of the data ports in the case of a short circuit or incorrect wiring. Rogue power can’t pass through the Storm10 into your wider installation.

The Storm10 has been engineered for 24/7 operation and surge protection. If your data cabling has a fault that causes a spike in voltage, a heavy-handed installer gives it static shock, or maybe your DMX lines have a lot of electrical noise on them, the issue won’t be passed through the Storm10 to your other equipment. Any disturbance is automatically suppressed.

Check out the ENTTEC Knowledge Base to learn which third party software is compatible with ENTTEC devices.

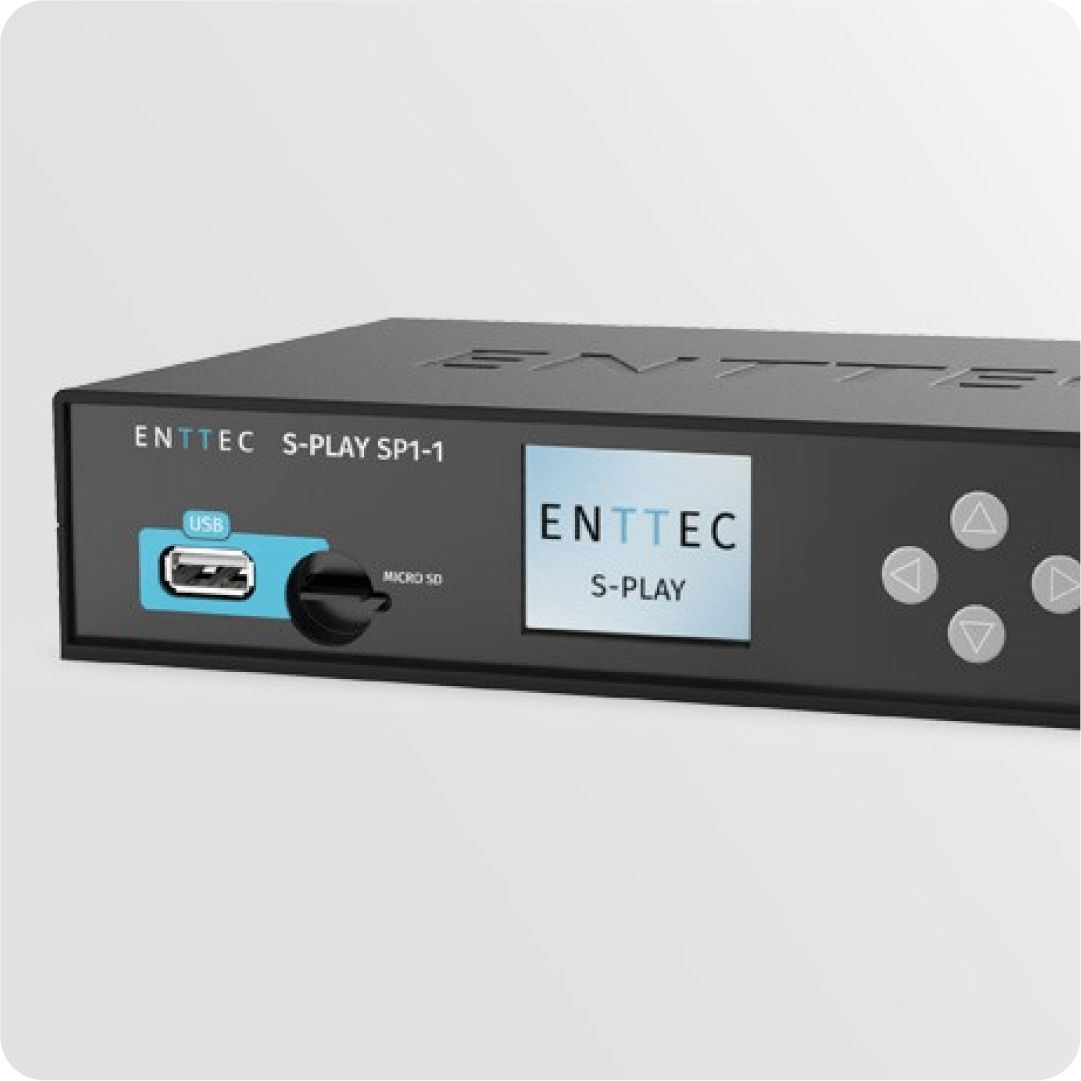

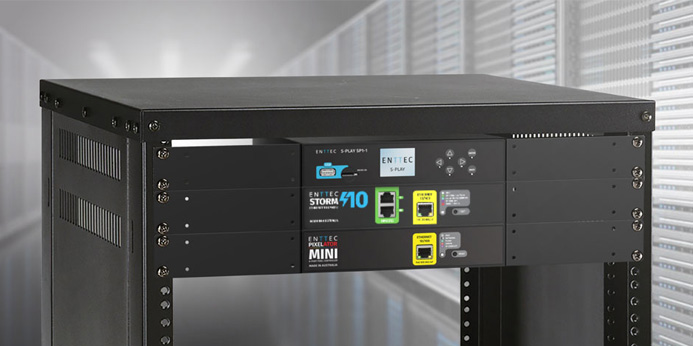

Combine the Storm10 with the S-PLAY show controller to trigger or schedule lighting states. Seamlessly integrating with a huge number of popular building integration management and smart home systems, you can simply set and forget, knowing that you can rely on your S-PLAY to precisely schedule your show whenever it’s required – 24 hours a day, 365 days a year!

Enjoy peace of mind with ENTTEC’s 3-year manufacturer’s defects warranty as well as our renowned global technical support. We’re always here to help.

Resources

Storm10 datasheet

EN-Case Installation Guide

Storm10 user manual

Hi-res image archive (29.8MB)

CAD files & technical drawings

Storm10 firmware v1.2

Storm10 release notes

The Storm10 can be discovered on your network using our EMU application and ArtPoll.

Knowledge Base & FAQ’s

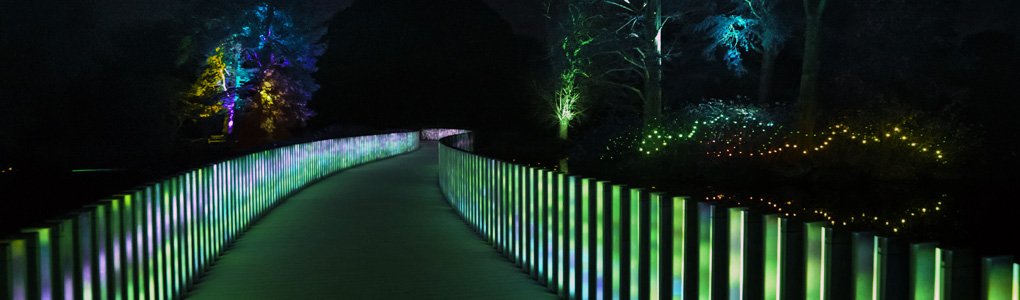

Projects Featuring the Storm10
