PXL40 metal LED pixel dot light flexible strings

Individually addressable, LED pixel dot lights

ENTTEC’s high-resolution, individually addressable SMART PXL40 LED pixel dots feature robust, weatherproof UV-resistant cases made from marine-grade aluminium to withstand the harshest environments. These versatile, easy-to-install RGB dots can be easily configured into virtually any shape, creating striking, precise lighting effects that double as a bold design feature. Designed by lighting professionals for lighting professionals, they elevate any architectural, commercial, or entertainment project to the next level.

A single Smart PXL 40 pixel dot seen face on, a glossy white diffused dome in a black round housing with a fixing ear top and bottom, the black cable entering each side through grips moulded with ENTTEC.

Image 1 of 18

Weather resistant

Constructed from premium durable materials in our factory, SMART PXL dots offer outstanding protection against moisture (IP67), corrosion and impact (IK10), and come with a 3-year warranty. The perfect outdoor pixel light for all projects.

Custom options

Because your projects are built to custom specifications, so are our metal SMART PXL40 dots. Select from different lens options and custom spacing from anywhere between 125mm and 1200mm between each dot.

True brightness

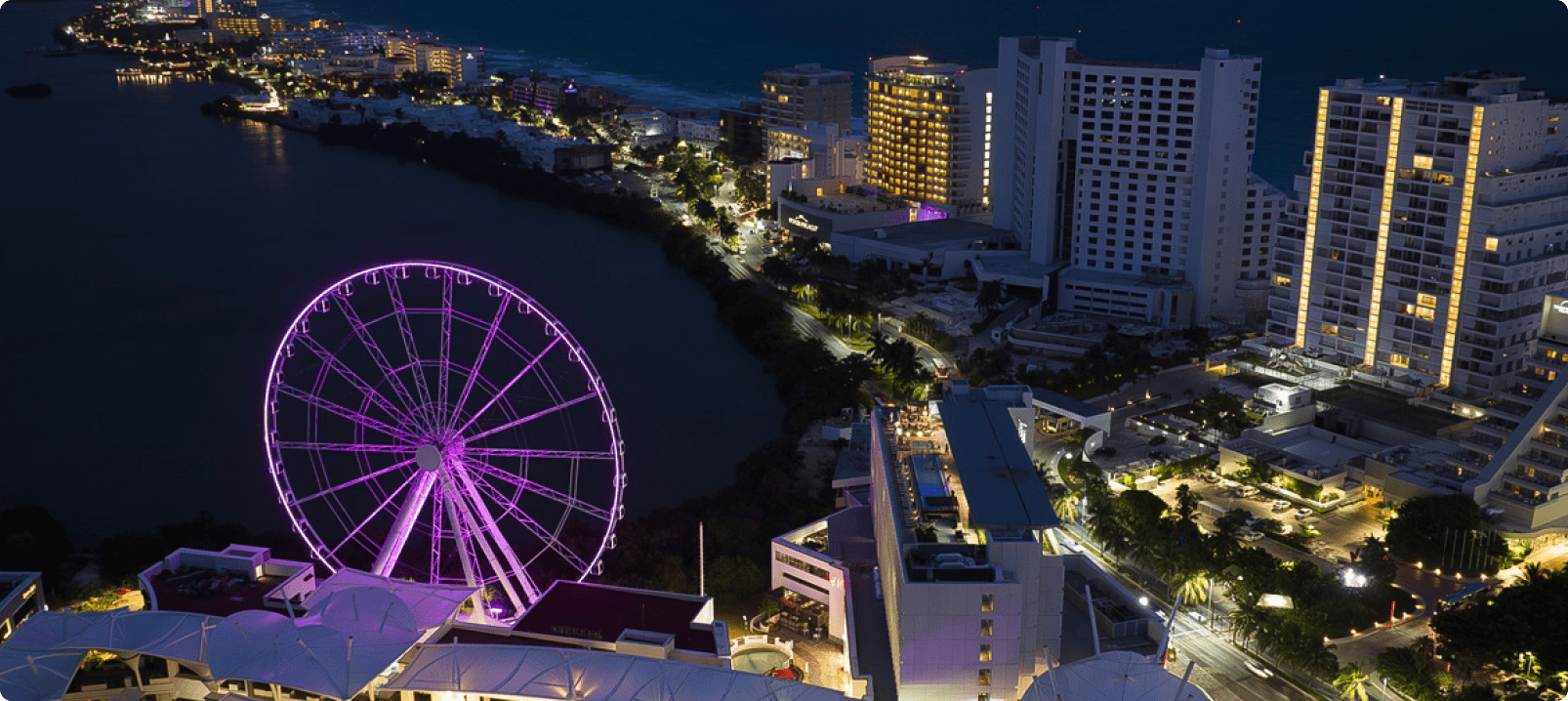

Each direct-view SMART PXL dot contains 6 premium RGB LED chips, giving an impressive lumen output. They look amazing from a distance and have been used to great effect around the world on everything from bridges to ferris wheels.

Smooth as silk

16-bit native for an ultra-smooth dimming curve and mixing detail that will truly wow your audience.

For extended runs

We use custom made quality cable to combat voltage drop, ensuring you a richness and consistency of colour. With the best combination of customisation, you’ll be able to achieve long runs of up to 70 dots without power injection. Talk to our friendly sales team now to understand the full potential of your design!

Ultra flexible

The versatile nature of SMART PXL dot strings means they’re easy-to-install around tricky angles, corners or bends, making them ideal to show off or highlight architectural features. Talk with an ENTTEC expert and we can help you bring almost any design you can imagine to life.

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

Accessories

PXL-40 LED pixel dot accessories

At ENTTEC, we know that well-considered design is key to a successful installation. Our team have created a leading range of innovative accessories with premium cabling and connectors to support your project and make specifying and installing the SMART PXL series simple. For peace of mind, our 24V and 48V accessories also feature different pinouts to prevent damage being caused when using different voltages.

A black in-line module on a short cable, splitting into two leads that end in a mating pair of sealed connectors, one with a green four-way insert and orange sealing ring, the other a black four-pin plug.

A run of white pixel dots on white cable, each a shallow round housing with two fixing ears and a clear rim, the domes removed to show the LED circuit board inside.

A black cable with a sealed four-way socket connector at one end, its green insert and orange seal facing the camera and a black latch on top, and a matching black four-way plug shell on the other lead, the cable looping away behind.

Smart PXL 40 Metal connectivity diagram: addressable pixel dots chained for pixel data and power from an ENTTEC pixel controller. — Connectivity diagram

Pixel Designer

See it wired before you order

Pick a layout, shape it to your space and tell us where the controllers go. We work out the strings, controllers, power and cabling, then a sales engineer quotes it.

Start a design

Free to use, no account needed. Already have a design number? Open your design to change it or request a quote.

Recorded in Pixel Designer: a 30 x 10 m building front, dots every 300 mm.

Specifications

Search specifications

Connectors and network
Cabling	includes premium automotive style connectors
Data configuration	auto-addressing
Control protocol	ENTTEC SPXL-16
Output and control
led channels	RGB (Red/Green/Blue)
Colour resolution	16-bit
LED source	6 x RGB SMD3535 – customisation options available
Control channels	equivalent of 6 DMX channels of data per dot
Dots controllable per DMX universe	85
Max lumens (lm)	no lens: 33 / flat lens: 29 / dome lens: 24
Efficacy (max lm/watt)	no lens: 22 / flat lens: 19.3 / dome lens: 16
LED lifetime	50,000 hrs (L70)
Lens options	⌀41.5mm diffuse dome / clear flat / no lens
Lens material	optical grade polycarbonate
Power and thermal
Input voltage	24V DC
Operating temperature	-20°C to +50°C
Physical and supply
Body material	machined and anodised 6032 aluminium
UV resistant	Yes
IK rating	IK10
IP rating	IP67
Vibration rating	3G
Overall dimensions	77.2mm L x 57mm W x 14mm H (no lens) / 31.2mm H (dome lens) / 22.1mm H (flat lens)
Weight	1.00 kg (string of 20 dots)
Dot pitch/spacing	customisation options available: from 125mm to 1200mm
Installation	2 x ⌀4.3mm mounting holes for M4 screws
Compliance	CE / WEEE / RoHS (EU), UKCA (UK)
Warranty	3-year return-to-base manufacturer warranty as standard Talk to us to arrange longer periods
