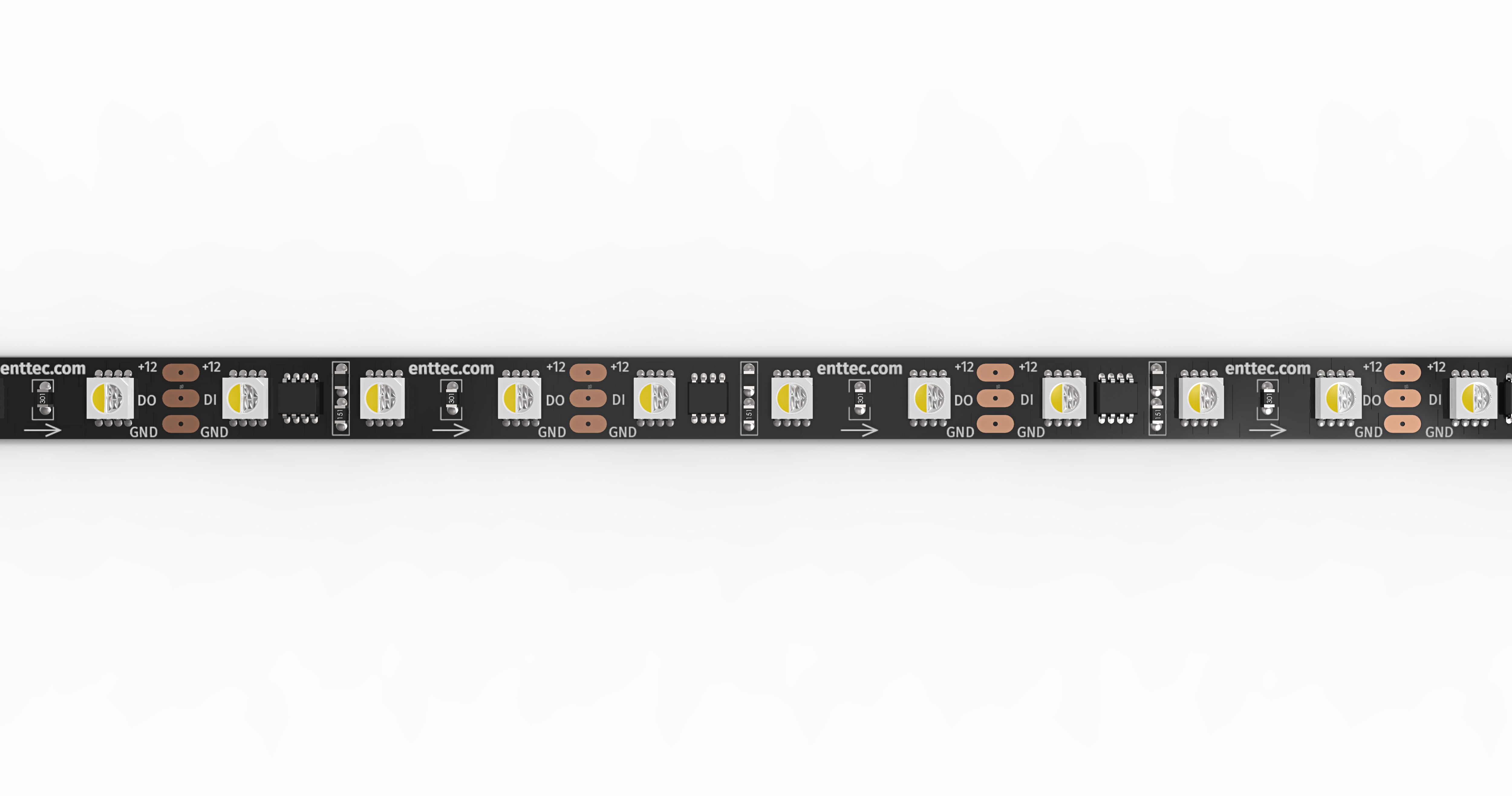

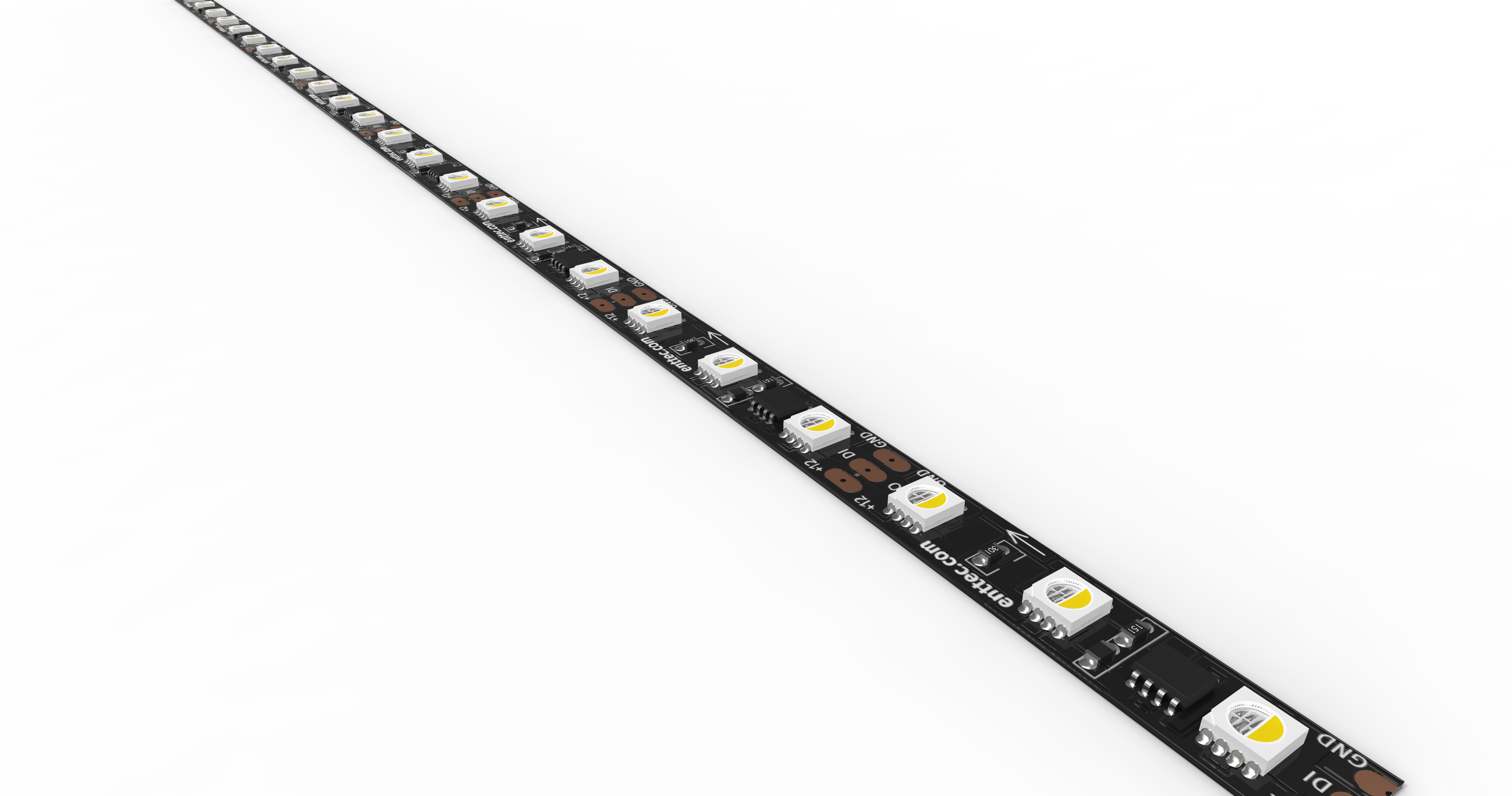

12V RGBW 60-LEDs/m long-range pixel strip

12V individually-controllable 60 pixel/m RGBW pixel strip with black or white PCB for long-range applications. 5m roll.

    SKU: 8PXB60-RGBW-12V

    12V RGBW long-range LED pixel strip for professional applications.



    • Quality Australian design
    • RGBW 32-bit True Colour LED pixel strip
    • Premium flexible 3oz thicker copper PCB
    • Suitable for architectural + entertainment applications
    • 12V DC input supply voltage
    • 60 LED/metre density
    • Black or white PCB options



    ENTTEC's 8PXB60-RGBW-12V series are 12V, 60-LED-per-metre, addressable RGBW LED pixel strips designed for long-range professional architectural and entertainment installations, achieving soft pastels or saturated colours on a large scale.

    Cut and join into any conceivable shape.

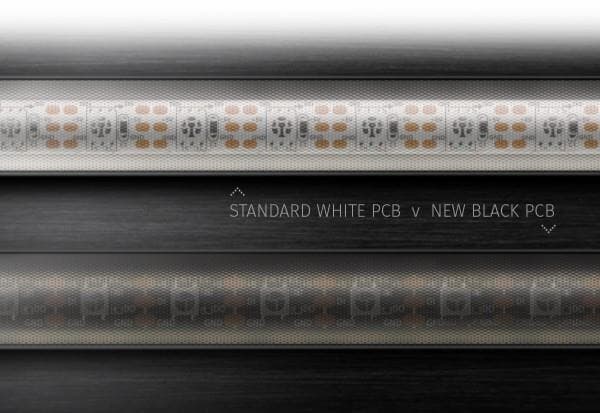

    Available with a black or white PCB, this premium LED pixel strip is perfectly suited for a variety of different applications - especially for situations where you want to run a stretch of LEDs over large distances. Its high scan rate and True Colour palette ensure that graphics and animations are played back smoothly and consistently.

    At ENTTEC, manufacturing quality and attention to detail is paramount. We always use a thicker 3oz copper PCB to offer more durability, better heat dissipation and reduced voltage drop when compared to other LED strips available on the market. This, in combination with the 12V operating voltage, allows up to a 7m run with a single power injection.

    • 60 RGBW LEDs per metre

      ENTTEC LED pixel strip boasts 60 colour-calibrated RGBW LEDs per metre. Each LED is engineered to offer consistent brightness and extended colour gamut.

    • Go further than before

      On our 12V 8PXB60-RGBW-12V strip, every consecutive group of three SMD chips behave as one pixel. This means that you can free up extra channels to triple your output capabilities: perfect for controlling longer setups.

    • Bright + super-efficient

      With a maximum power consumption of only 17.64 watts per metre, and a lumen capacity of 655.6 lumens per metre, this 12V pixel strip provides a bright and efficient package.

    • Millions of colours

      Each pixel can achieve a 32-bit, True Colour display. That’s a whopping 4,294,967,296 possible colours for each LED chip!

    • Australian designed for top performance

      Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.

    • Extend as you please

      Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only.

    • Is this the right LED strip for your project?

      With such a variety of LED strips available, it can be easy to get confused as to which strip might be best suited for your requirements.

      Check out this video to learn about all the main considerations you need to take into account, such as CV strip v pixel strip, voltage, protocols, RGB v RGBW, pixels per metre, PCB colour, and more.

      If you’re still unsure after viewing, don’t panic – we’re always here to help you at ENTTEC. Get in touch with us and we’ll point you in the right direction!

    Technical specifications

    Connectors 2 x 3-pin JST SM connectors (3A Max) Min. bend radius 30mm / 1.2”
    Input voltage 12V Spacing between cuttable sections 50mm / 1.98”
    Max. watts per metre 17.64 IP rating IP20
    Efficacy (lumens per watt) 37.17 Environmental operating temperature 0°C to 50°C / 32°F to 122°F
    DMX channels per pixel 4 Environmental operating humidity 5- 95% (non-condensing)
    Beam angle 120° Weight (5m roll) 0.18Kg / 0.40lbs
    Control protocol  SM16704 (compatible with UCS2904) Dimensions (5m roll) 240 x 215 x 16mm / 9.45 x 8.47 x 0.63”
    Backup data line No Shipping weight (5-roll carton) 0.80Kg / 1.76lbs
    Pixel mapping order RGBW Shipping dimensions (5-roll carton) 260 x 225 x 93mm / 10.24 x 10.04 x 3.66”
    PCB colour Black or white options Warranty 1-year return to base manufacturer warranty
    PCB width 10mm / 0.40” Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)

    DOCUMENTS (BLACK PCB)

    8PXB60 RGBW-12V-B datasheet

    8PXB60 RGBW-12V-B installation guide

    DOCUMENTS (WHITE PCB)

    8PXB60 RGBW-12V-W datasheet

    8PXB60 RGBW-12V-W installation guide
