Unlock maximum potential with 16 universe overdrive mode

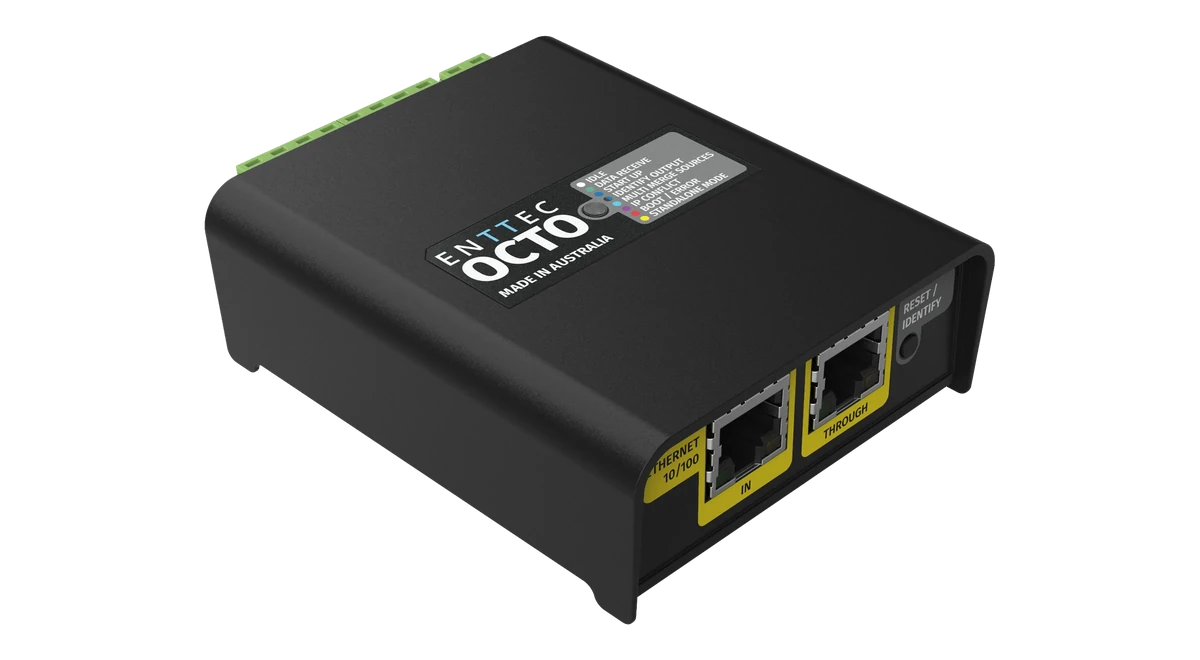

Referred to as the ‘OCTO Mk2,’ the OCTO is a powerful dual-output eDMX to LED pixel converter with overdrive mode transmitting up to 16-Universes. Robust and reliable, it connects directly to LED lights, elevating architectural, commercial, and entertainment projects.
Designed for fast deployment of LED strips and pixel systems, the OCTO supports Art-Net, sACN, ESP, and KiNet protocols, and works with most SPI LED strips. Its localhost web interface enables easy gradient effects via the inbuilt FX engine, with standalone shows on power-up, no DMX needed.
With installer-friendly features like network chaining, custom protocols, and flexible mounting options, the OCTO is the ultimate LED pixel control solution.
Note: The OCTO Mk2 does not require or use PLink Injectors.
Image 1 of 5
Standalone FX mode
While the OCTO is well-known for its supreme handling of live eDMX data feeds, it also features a handy standalone function. Create and edit gradient effects with real-time preview via the onboard FX generator – then set them to play automatically upon power-up with no DMX source or user interaction needed. Easy!
4U + 4U = 16U?
That’s right! The OCTO will efficiently convert up to 16 universes of DMX-over-Ethernet to SPI pixel data, with auto-activation of Overdrive Mode when configured to output more than 4U per port – because you never know when you might need that little bit extra.
Powered by pixels
With its industry-leading, wide input voltage range of 4-60V, the OCTO can be powered directly by your LED pixel strip or dots via either port. This means there’s no need for extra wires or dedicated power supplies taking up precious socket space, making it a dream device for a fast, efficient install.
Easy fault-finding
The auto-refreshing view of channel values for each universe combined with network stats means you know exactly what data you are receiving and where it’s coming from. Add to that, with the Identify button setting the output to max, installers can quickly check if wiring is correct without having to rely on incoming data. It’s a breeze!
Installer-friendly
With support for multiple integrated circuits, the OCTO LED controller is packed with installer-friendly features. Its intuitive configuration enables the device to be heavily tailored to your projects, while its slim 4-DIN-unit form factor allows for discreet surface or TS-35 DIN-rail mounting.
Custom protocols
The OCTO supports more than 20 pixel protocols by default within the device, with and without a clock line. In the event of a missing protocol, our custom feature allows users to create a custom protocol for their desired pixel fixture anytime – without having to submit a support request for new firmware.
3-year warranty
ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.
International compliance
The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognised standards for sustainability and safety.
This ENTTEC product also conforms to the following international compliance and safety standards:
Get to know your OCTO
The ENTTEC OCTO’s status system is designed to offer real-time feedback on its operational state through LED indicators. These indicators provide essential information about the device’s connectivity, activity, and DMX status, helping users troubleshoot and monitor the system.
NOTE: This video features the launch version of the OCTO MK2 which features a different LED status configuration to the current model. The functionality of the device remains unchanged.
Pixel Controller comparison
 OCTO MK2SKU 71521Viewing | ||||||
|---|---|---|---|---|---|---|
| System | Standalone SPI | Standalone SPI | Standalone SPI | Standalone SPI | Pixelator + PLink | Pixelator + PLink |
| Power Input | 5-48V DC | 5-60V DC | 4-60V DC | 5-60V DC | 12-24V DC / PoE | 12-24V DC / PoE |
| Max Ports | 2 | 2 | 2 | 4 | 8 | 16 |
| Max Output Ports | 2 (Data) | 2 (Clocked Data) | 2 (Clocked Data) | 2 (Data) + 2 x (CLK/DATA) | 8 (PLink) | 16 (PLink) |
| Max Universes | 4U via USB or standalone, 2U via DMX | 8U | 16U | 32U | 32U | 128U |
| Universe per Port | 2U | 4U | 4U + 4U Overdrive | 6U + 2U Overdrive | 2U + 2U Overdrive | 6U + 2U Overdrive |
| Max Cable Distance | 3m to first pixel | 3m to first pixel | 3m to first pixel | 3m to first pixel | 300m with PLink | 300m with PLink |
| Port Sync | No | Yes | No | Yes | No | Yes |
| Standalone Mode | Yes | No | Yes | Yes | No | No |
| Custom Protocol CreationSame on all | Yes | Yes | Yes | Yes | Yes | Yes |
| ELM 2024 Promo Code | No | No | 8U | 16U | 16U | 16U |
| Mounting Option/s | DIN-rail/Surface | DIN-rail/Surface | DIN-rail/Surface | DIN-rail/Surface | 1U Rack/DIN/Surface | 1U Rack/DIN/Surface |
| Best For | Small standalone installs | Compact installs | Small-medium installs | Medium-large installs | Large-scale installs | Large commercial installs |
| WarrantySame on all | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
Specifications
| Connectors and network | |
|---|---|
| Connectors | 2 x Network (RJ45) 2 x SPI Output (4-Pin Phoenix) 1 x Power (2-Pin Phoenix) |
| Network speed | 10/100Base-T |
| Network discovery | ENTTEC EMU software |
| Network configuration | Static (Default 192.168.0.10) / DHCP |
| IGMP Version | IGMPv2 |
| Recommended network device quantity per chain | Chains of up to 8 devices give optimum synchronisation between outputs |
| LED indicators | Forward-facing LED indicator Network link/activity (integrated into RJ45 ports) |
| Output and control | |
| eDMX input protocol | Art-Net, sACN, ESP, KiNet |
| Data output type | SPI (NZR) |
| Overdrive Mode (Max 16U) | Auto activation |
| Max. eDMX -> pixel conversion per device | 16 Universes (8,192 channels) |
| Max. pixels controllable per device | RGB 2720 (1360 per port) / RGBW 2048 (1024 per port) |
| Max Frame Rate | 100fps |
| Firmware updates | V4.0 onwards |
| Power and thermal | |
| Input voltage | 4-60V DC |
| Max. power draw | 5W |
| Max. heat dissipation | 4.5W |
| Max. output voltage | 5V |
| Max. output current | 50mA |
| Cooling method | Convection |
| Operating temperature | -20°C to 50°C /-4°F to 122°F |
| Operating humidity | 5 to 95% (non-condensing) |
| Physical and supply | |
| IP rating | IP20 |
| Body material | ABS plastic |
| Mounting options | Surface & TS35 DIN Rail mount |
| Unit dimensions | 100.5mm x 77.9mm x 31mm |
| Unit weight | 0.11kg / 0.24lbs |
| Shipping Dimensions | 165mm x 145mm x 43mm |
| Shipping weight | 0.18kg / 0.39lbs |
| Warranty | 3-year return-to-base manufacturer warranty |
| Compliance | UL / FCC (USA), UL (Canada), RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK) |
Resources
Documentation
Images
Legacy resources
Pre-listed supported protocols*: APA 104, GS8208B, SPXL (16-bit & 8-bit), SK6812, TM1804, TM1812, TM1814, UCS1903, UCS2903, UCS2904, UCS8903 (16-bit & 8-bit), UCS8904* (16-bit & 8-bit), WS2811, WS2812, WS2812B, WS2813, WS2815, WS2818*, AHL003 (16-bit & 8-bit), SJ1221(16-bit & 8-bit), TLC5973(16-bit & 8-bit). *IMPORTANT: If you wish to control a protocol marked with a * and the option to do so is missing in the firmware interface for your product version, please select WS2811 or WS2812b instead for your LEDs to work properly.
