5V RGB LED pixel strip

5V RGB LED pixel strip for professional applications

ENTTEC's 8PXA60-RGB-5V series are 5V, 60-LED-per-metre, addressable RGB LED pixel strips designed for professional architectural and entertainment purposes, achieving soft pastels or saturated colours on a large scale.

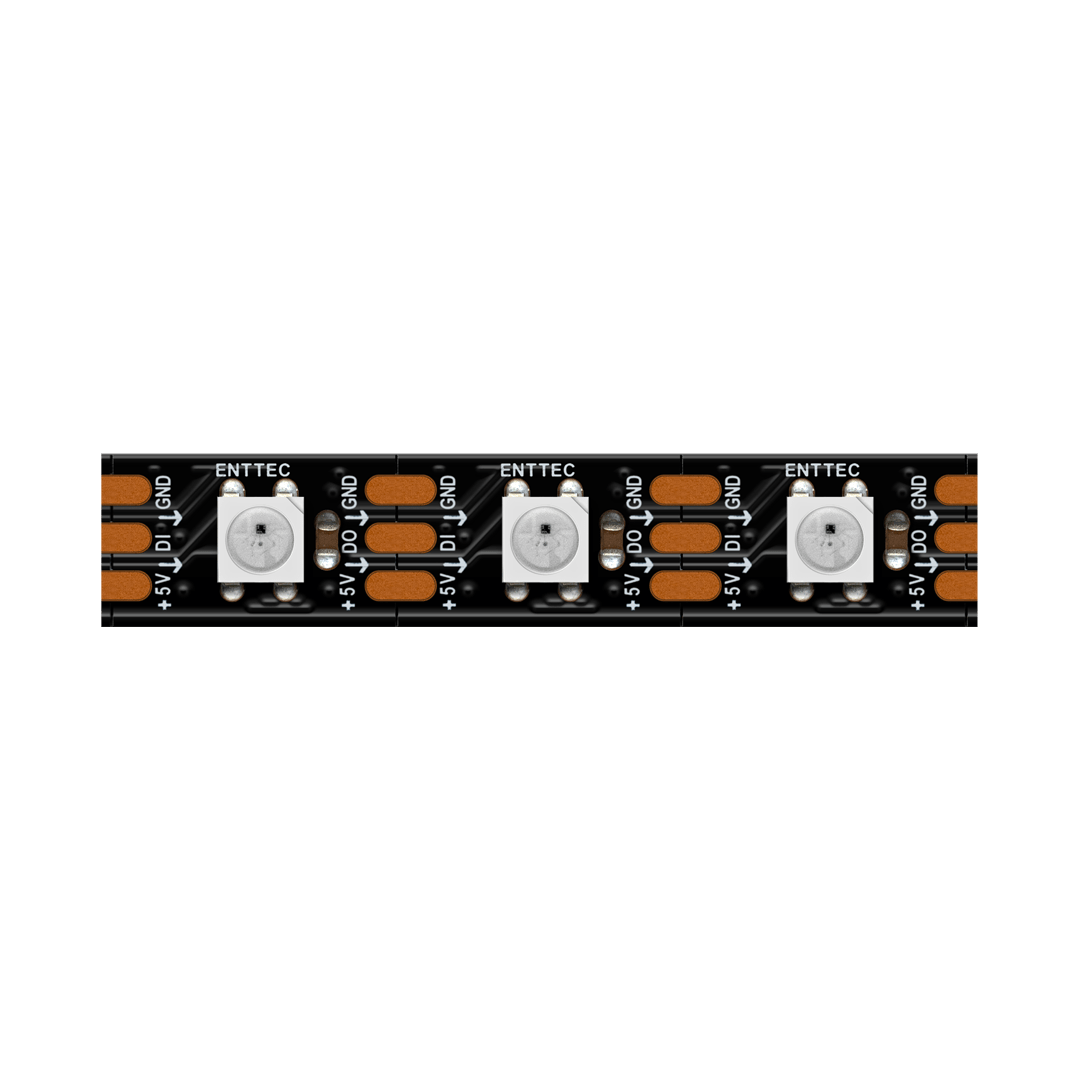

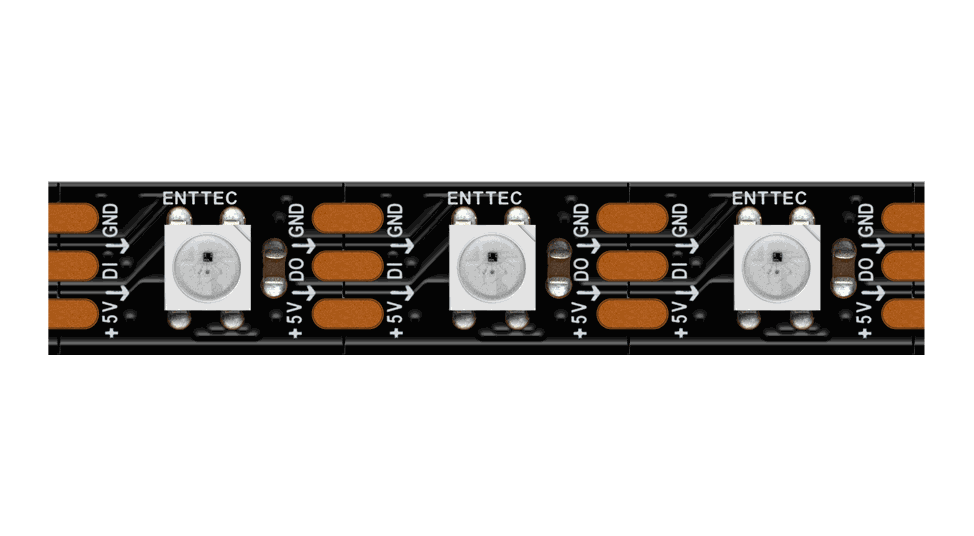

Close-up of the black PCB strip, three LEDs between copper solder pads marked ENTTEC, +5V, DI, DO and GND.

Image 1 of 3

60 RGB LEDs per metre

ENTTEC LED pixel strip boasts 60 colour-calibrated RGB LEDs per metre. Each LED is engineered to offer consistent brightness and extended colour gamut.

Bright + super-efficient

With a maximum power consumption of only 10.5 watts per metre, and a lumen capacity of 259.4 lumens per metre, this 5V pixel strip provides a bright and efficient package.

Australian designed for top performance

Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.

Black or white

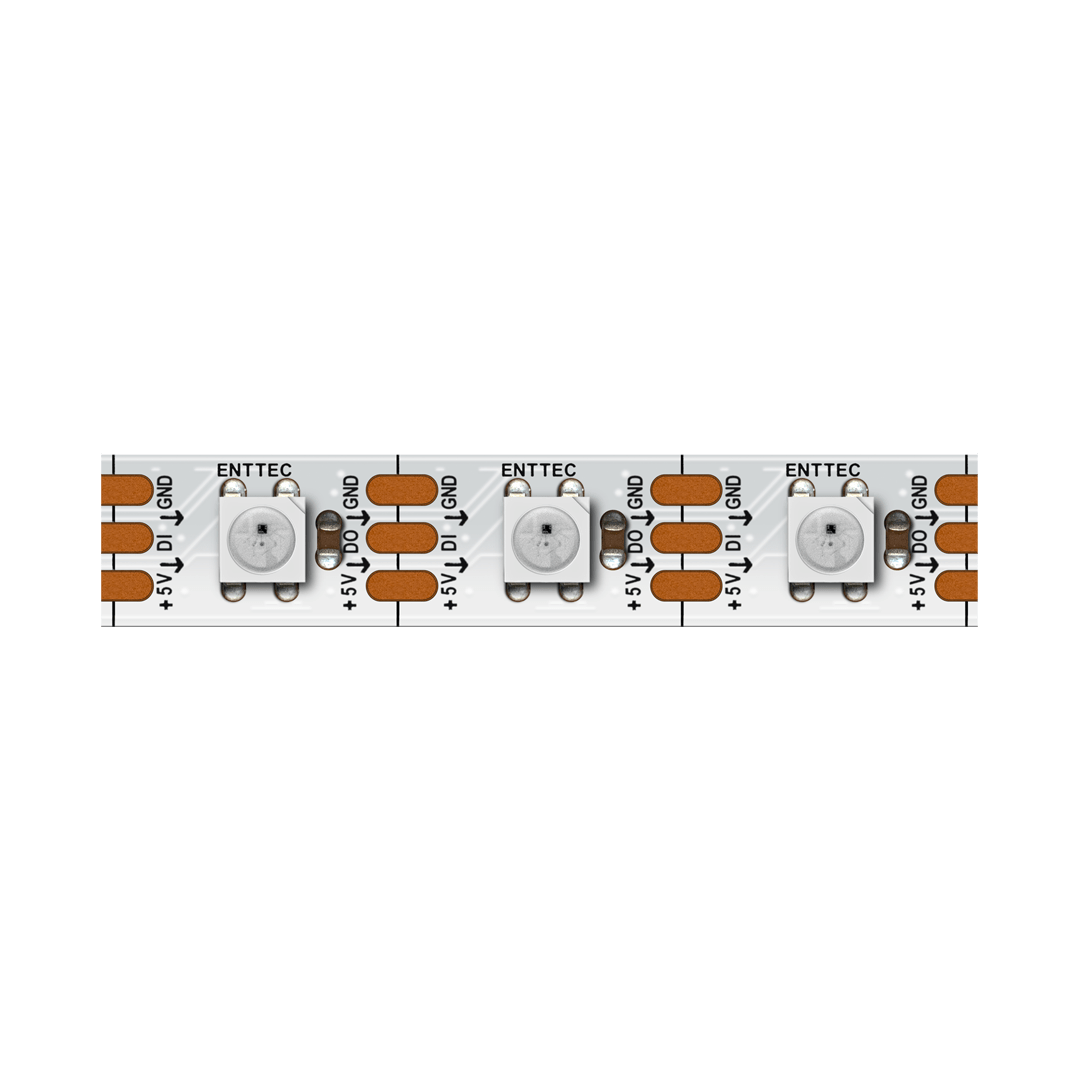

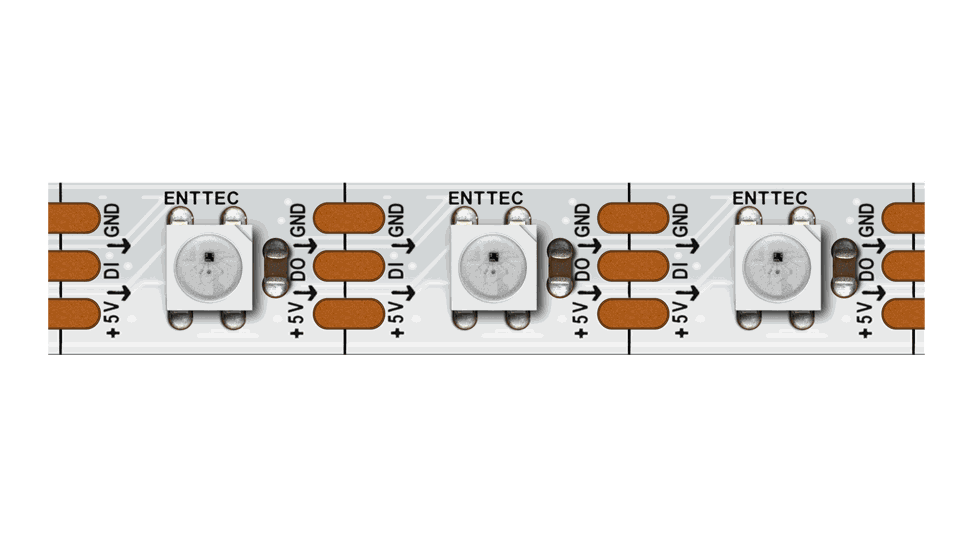

A black printed circuit board is a great way to minimise external light reflection and conceal the workings of your installation. Alternatively, a white PCB can leave your installation looking slick and clean. Simply pick whichever one best suits your needs.

Millions of colours

Each pixel can achieve a 24-bit, True Colour display. That’s a whopping 16,777,216 possible colours for each LED chip!

Extend as you please

Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only.

2-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 2-year return-to-base manufacturer warranty on this product.

Is this the right LED strip for your project?

With such a variety of LED strips available, it can be easy to get confused as to which strip might be best suited for your requirements.

Check out this video to learn about all the main considerations you need to take into account, such as CV strip v pixel strip, voltage, protocols, RGB v RGBW, pixels per metre, PCB colour, and more.

If you’re still unsure after viewing, don’t panic – we’re always here to help you at ENTTEC. Get in touch with us and we’ll point you in the right direction!

A black strip and a white strip on a pale textured background, an ENTTEC ruler to the right and a row of compliance marks below.

Specifications

Search specifications

Connectors and network
Connectors	2 x 3-pin JST SM connectors (3A Max)
Output and control
Control protocol	SK6812 IC chips (compatible with WS2811 protocol)
DMX channels per pixel	3
Pixel mapping order	GRB
Backup data line	No
Efficacy (lumens per watt)	24.7
Beam angle	120°
Power and thermal
Input voltage	5V
Max. watts per metre	10.5 W
Environmental operating temperature	0°C to 50°C / 32°F to 122°F
Environmental operating humidity	5- 95% (non-condensing)
Physical and supply
IP rating	IP20
PCB colour	Black or white options
Min. bend radius	30mm / 1.2”
Spacing between cuttable sections	16.6mm / 0.66”
Weight	(5m roll) 0.115Kg / 0.254lbs
Dimensions	(5m roll) 240 x 215 x 16mm / 9.45 x 8.47 x 0.63”
Shipping weight (5-roll carton)	0.80Kg / 1.76lbs
Shipping dimensions (5-roll carton)	260 x 225 x 93mm / 10.24 x 10.04 x 3.66”
Warranty	2-year return-to-base manufacturer warranty
Compliance	RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
