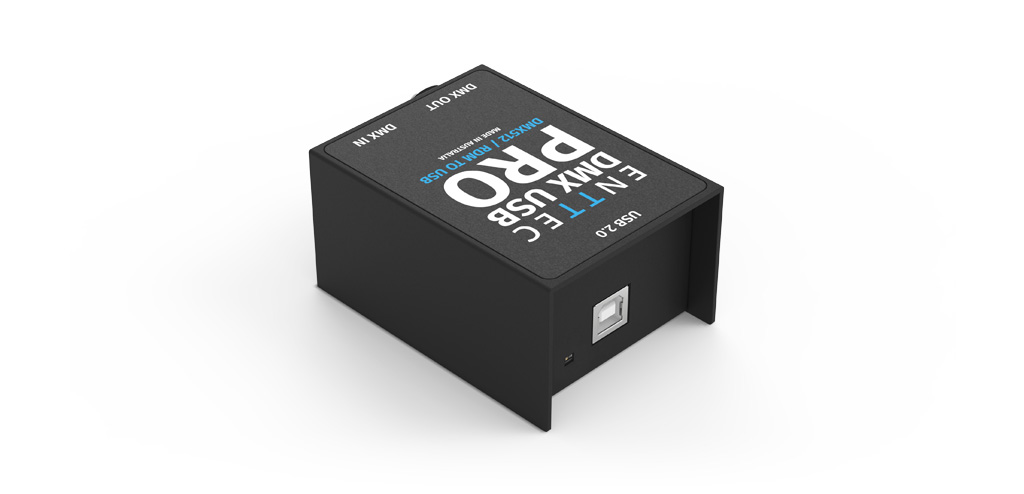

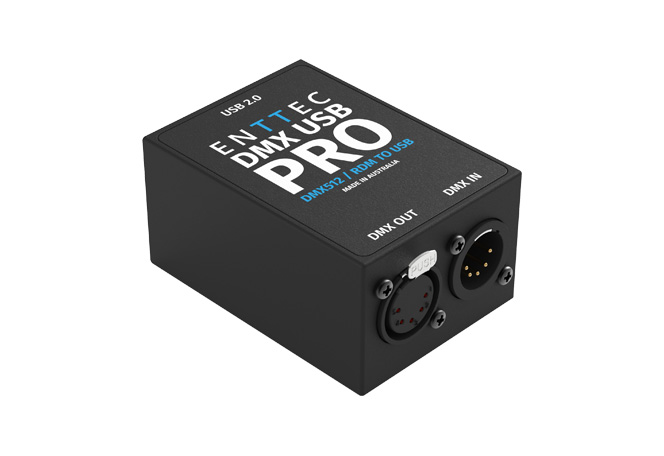

Industry standard USB 2.0 Interface for DMX/RDM. Control your lights from PC or Mac programs
£110.00 + VAT
The first choice of lighting professionals
Products don’t become an industry standard for no reason. The DMX USB Pro has proven for a number of years that it’s both a reliable and robust product usable for a number of applications. It has been adopted by multiple professionals across the world. The DMX USB Pro allows for simple USB 2.0 support through a robust USB-B connection, sending or receiving a physical DMX512 signal using PCs, Macs and Linux devices running a broad array of third-party software.

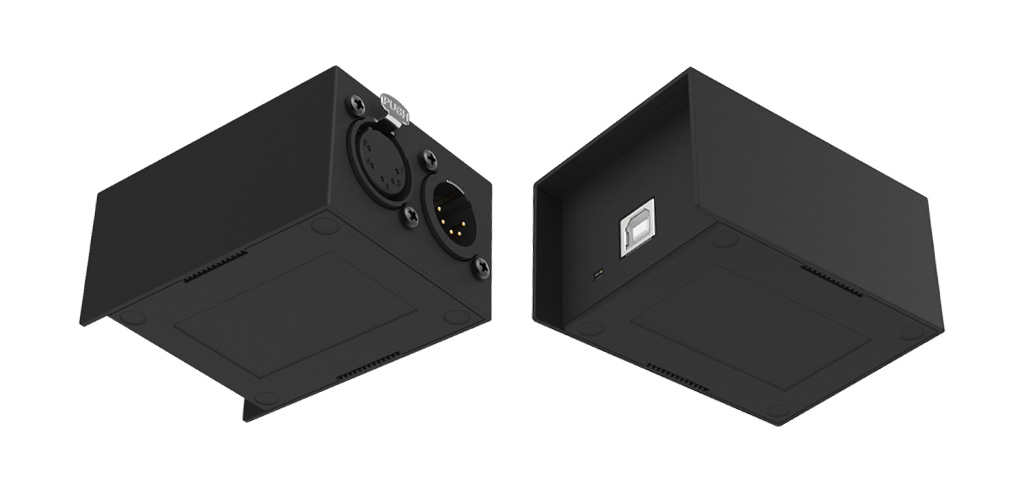

With industry standard-5 pin input and output connections as well as 1500V full isolation for both data and power lines, you can rest assured that your computer will be protected from any stray voltages and faults that may occur on the DMX line. Furthermore, this DMX USB interface features an internal frame buffer for consistent DMX generation when outputting. This means it isn’t dependant on your PC’s processor to regulate a steady, reliable flow of data and to provide a stable data stream regardless of your PC’s workload.
So no matter what software you choose, you know you can rely on ENTTEC DMX USB PRO to do the job.
Designed for simple USB connection across Windows, Mac and Linux, DMX USB Pro is compatible with an enormous range of commercial and free software. So no matter what software you choose, you know you can rely on ENTTEC DMX USB PRO to do the job.
Windows, Mac and Linux
Industry Standard USB 2.0 Support on Windows PC and Mac OSX, and popular linux flavors. Thanks to FTDI drivers, which enable the usb communication between your computer and DMX USB PRO, it will work on most of the computers. Even Raspberry Pi is now supported, for the hobbyists within you.
DMX Input or Output
Supports either, DMX Input or DMX Output mode. And comes RDM enabled too (with correct firmware). So, no matter what project you have, DMX USB PRO is the perfect device to accompany your computer and software. Internal frame buffering for steady DMX Generation in Output mode.
Change it as you please
Refresh Rate configurable from 1 to 40 Fps. Break time is configurable from 96uS to 1.3mS, and MaB is configurable from 10.6uS to 1.3mS. You can even change the firmware to support your requirement. RDM firmware is separate than the DMX one. All done easily with the PRO-Manager App
Isolated to protect
1500 V full isolation (data & power lines to protect your computer from surges)
Recommended App: D-PRO
D-PRO is a software based lighting controller which plays well with a host of different professional level hardware devices from ENTTEC.
The perfect partner for DMX USB PRO.
3rd Party Controller Apps
- Chameleon Mac OSX
- Chromakinetics Windows
- Cue Player Lighting Windows
- D::Light Win / Mac / Linux
- DAZL Windows
- DMX 512 external for Max Win / Mac / Linux
- DMXControl Windows
- DigiSelect Windows
- FootLight Mac OSX
- Freestyler Windows
- Hsyco (Home Automation) Linux
- JS DMX Project Windows
- Jinx! LED Matrix Control Windows
- LXConsole Mac OSX
- LightFactory Windows
- LightJams Windows
- Lightforge Windows
- Lightkey Mac OSX
- Lightning DmxControl Mac OSX
- liveShowsoftware Windows / MacOS
- MaizeDMX Windows / MacOS
- Millumin Mac OSX
Official Tool: PRO Manager
PRO-Manager allows you to test and update your ENTTEC USB PRO. It’s easy to use and runs on both Windows and Mac (up to OSX 10.11).
3rd Party Controller Apps
- Plexus Windows
- QLab 4 Mac
- QLC + Win / Mac / Linux
- QuickShow – Pangolin Windows
- Show Cue Systems Windows
- ShowMagic Windows
- TJShow Windows
- VirtualLightDesk Mac OSX
- Vixenlights Windows
- White Cat Lighting Board Windows
3rd Party Visualizer Apps
3rd Party Media Server Apps
3rd Party Utilities
State-of-the-art, intuitive software designed for professional live musicians and DJs to run automated or responsive DMX light shows.
